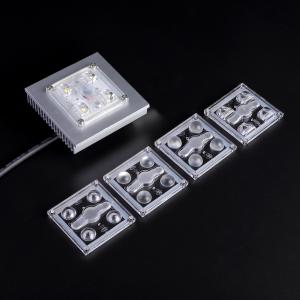

Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light

Name: Waterproof 10W 15W Mini 5050mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light
Brand: SunshineOpto
Price: 1 USD

Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light Manufactures

Brand Name : SunshineOpto

Model Number : SUN-D5050-4H1-B waterproof

Place of Origin : China

MOQ : 1000

Price : negotive

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000PCS/week

Delivery Time : according to the quantity

Packaging Details : cartons

Heat sink : L75*W75*T15mm

Lens size : 50X50mm

PCB Circuit : 2S2P or 4P1S, 12V/24VDC for choose

Lens angle : 60/90/150/150x75 degree

Contact Now

Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Light Replacement Retrofit Components 12V 24V LED Module for Street Light and Garden Light

Product description:

Features:

1, We use high quality brand 24V/6V 5050 SMD leds, one module support 10-15W power.

2, The PCB Circuit can design as 2 series or 1 series to meet 12V or 24V voltage requirements.

3, High Luminous flux 150-170lm/W but cheap price .

4, High transmittance PC lens with 60/90/150/150x75 degree beam angle for choose.
5, Designed for square application with easy installation process,
Suitable for retrofit projects and creating circular lights

Quick Details:

Model	SUN-D5050-4H1-B waterproof
Power	10W
Input Voltage	24V DC(If you need 12V DC, please contact us)
Current	400mA
Leds	4PCS 5050 LEDS
CCT & CRI	3000K/4000K/5000K/5700K/6500K Ra>70
Luminous efficiency	160lm/W
Luminous flux	1600lm
Material	Heat sink: Aluminum / Lens: PC/ PCB: Aluminum
IP level	IP 66
Dimensions	L75W75T15mm

Dimensions & drawing:

Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light

Lens beam angle:

Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light

Details:

Application:
