146*83 TPIII S Degree 8 Points SMD5050 Led Lens Array 5050 Leds PMMA

Name: 14683 TPIII S Degree 8 Points SMD5050 Led Lens Array 5050 Leds PMMA
Brand: SunshineOpto
Price: 1 USD

146*83 TPIII S Degree 8 Points SMD5050 Led Lens Array 5050 Leds PMMA Manufactures

Brand Name : SunshineOpto

Model Number : SUN-D5050-8H1-146*83-TPIII-S-LUMILEDS5050

Certification : SGS/ROHS

Place of Origin : Shenzhen,China

MOQ : 1 piece

Price : need to negotiation

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 5000 pcs per month

Delivery Time : 5-8 working days

Packaging Details : cartons

Model No : SUN-D5050-8H1-146*83-TPIII-S-LUMILEDS5050

Lens size : 50*50mm

Lens angle : 146*83-TPIII-S

Wick : 8pcs 5050 leds

Material : PMMA

Name : Led Lens Array

Contact Now

Product Description

Features:

1, This 8 IN 1 lens is one of the 50*50mm size lens series, a variety of angles are available,

lens angle include: 30/60/90/137*80/146*83 degree for smd 5050 leds, 15/30/60/90/142*52/100*65/150/147*72 degree for smd 3030 and 3535 leds.

2, lens size 50*50mm, small size can better replace the old lamp,

3, we can also provide match led board if you need, we provide one-step service, include led lens, led board, heat sink and led driver,

Product detials:

Lens size: 49.5*49.8*5.27mm,

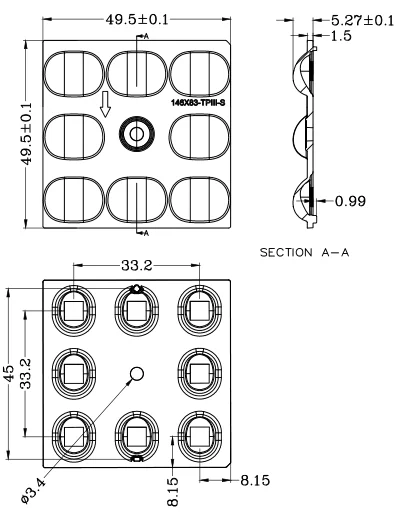

Lens drawing:

Lens angle: 146*83°

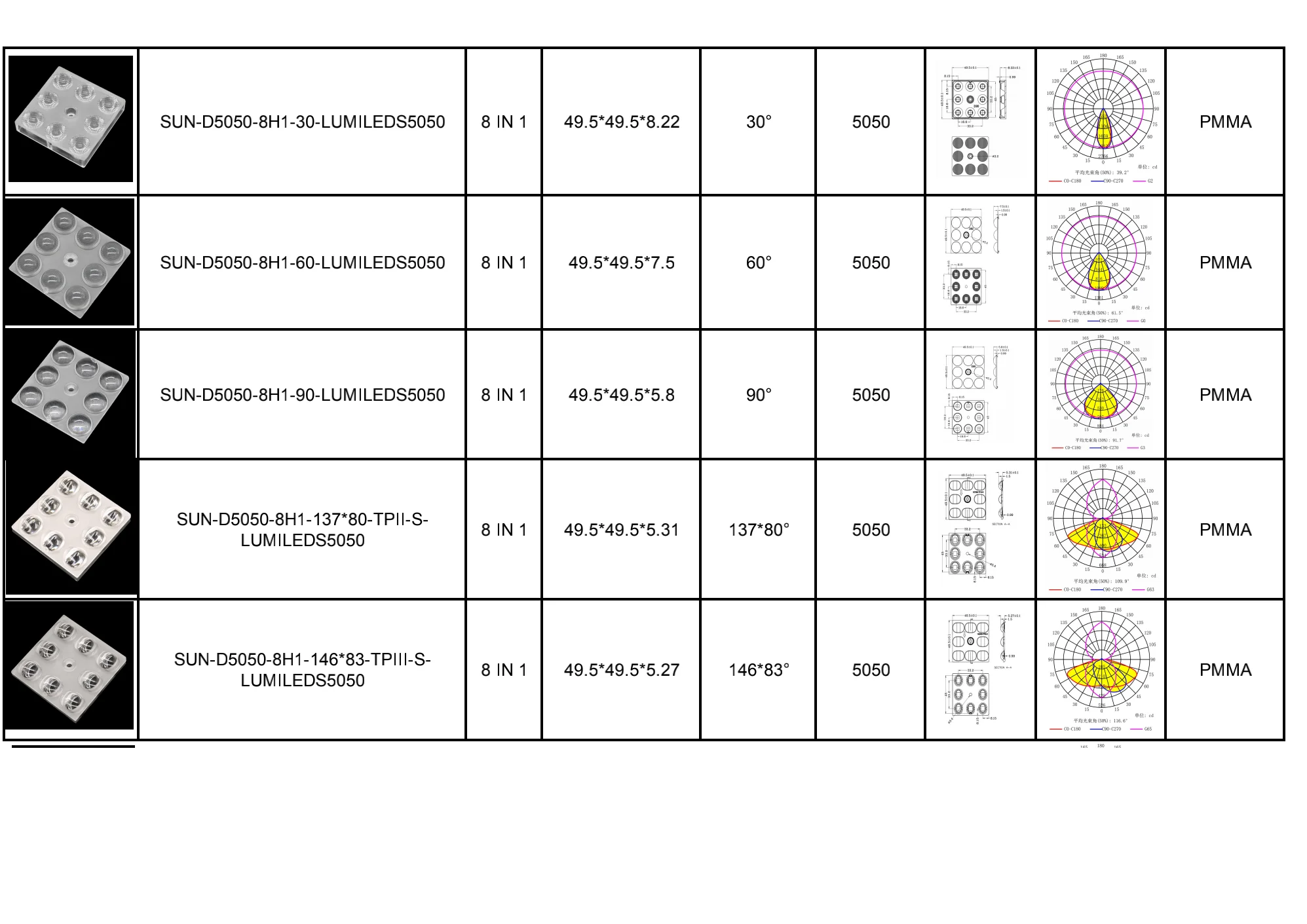

Other 8H1 LENS FOR SMD 5050 LEDS,
